Super Sack or Bulk Bag Unloader with Rotary Valve
Category: Misc.
Product ID: 5026
Specifications

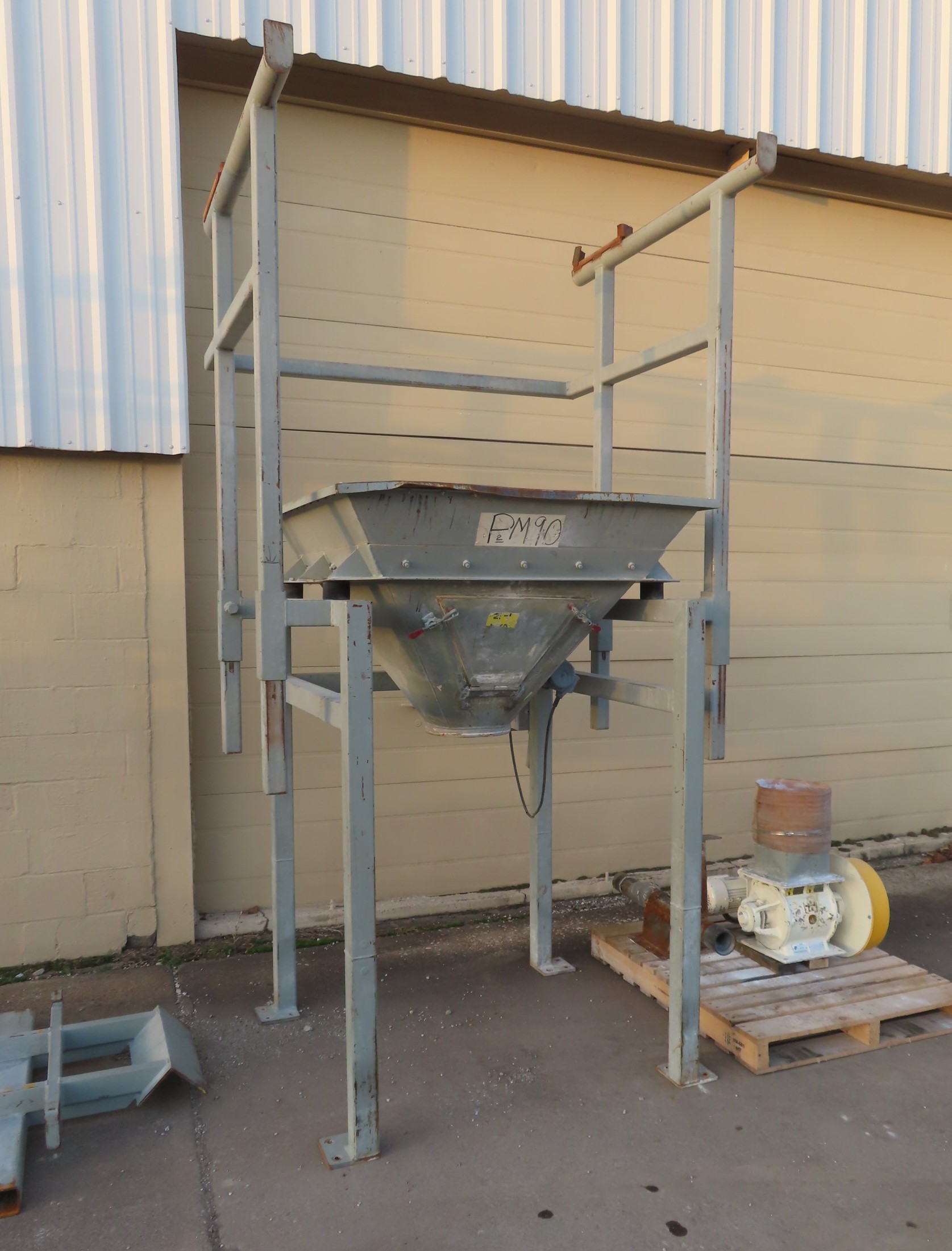

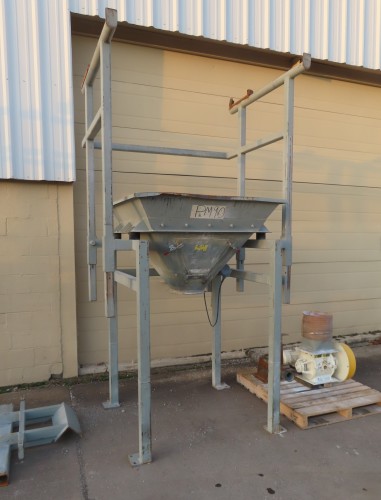

- » One (1) used Super Sack Unloader with Rotary Valve
- » Footprint: 53" wide x 47" deep
- » Space between the two front legs: 41"
- » Adjustable height for setting super sack
- » Accommodates different bag heights
- » Flexible rubber pad helps stop material bridging
- » Equipped with front hinged door for removing discharge string
- » Discharge: 12" diameter

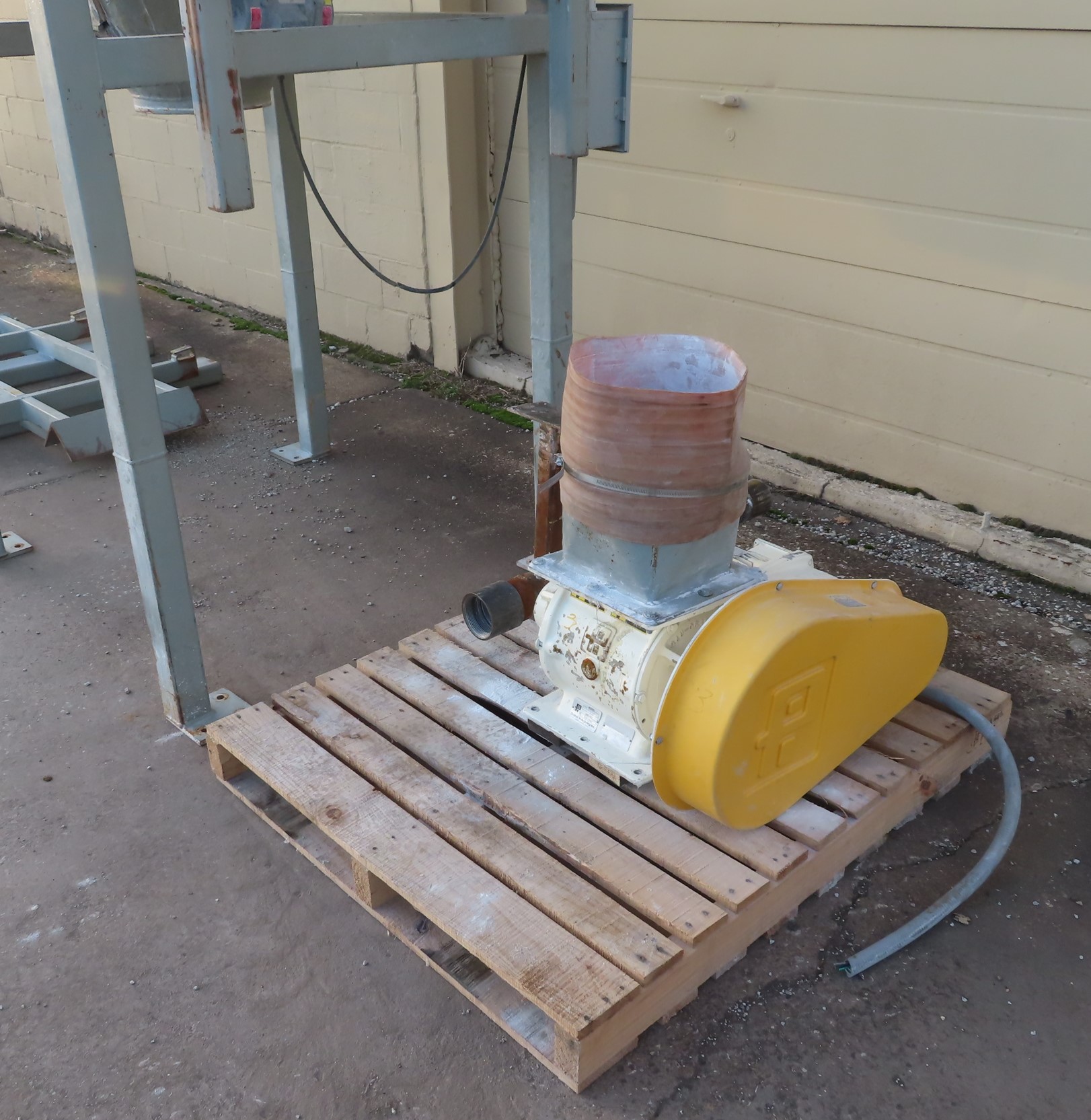

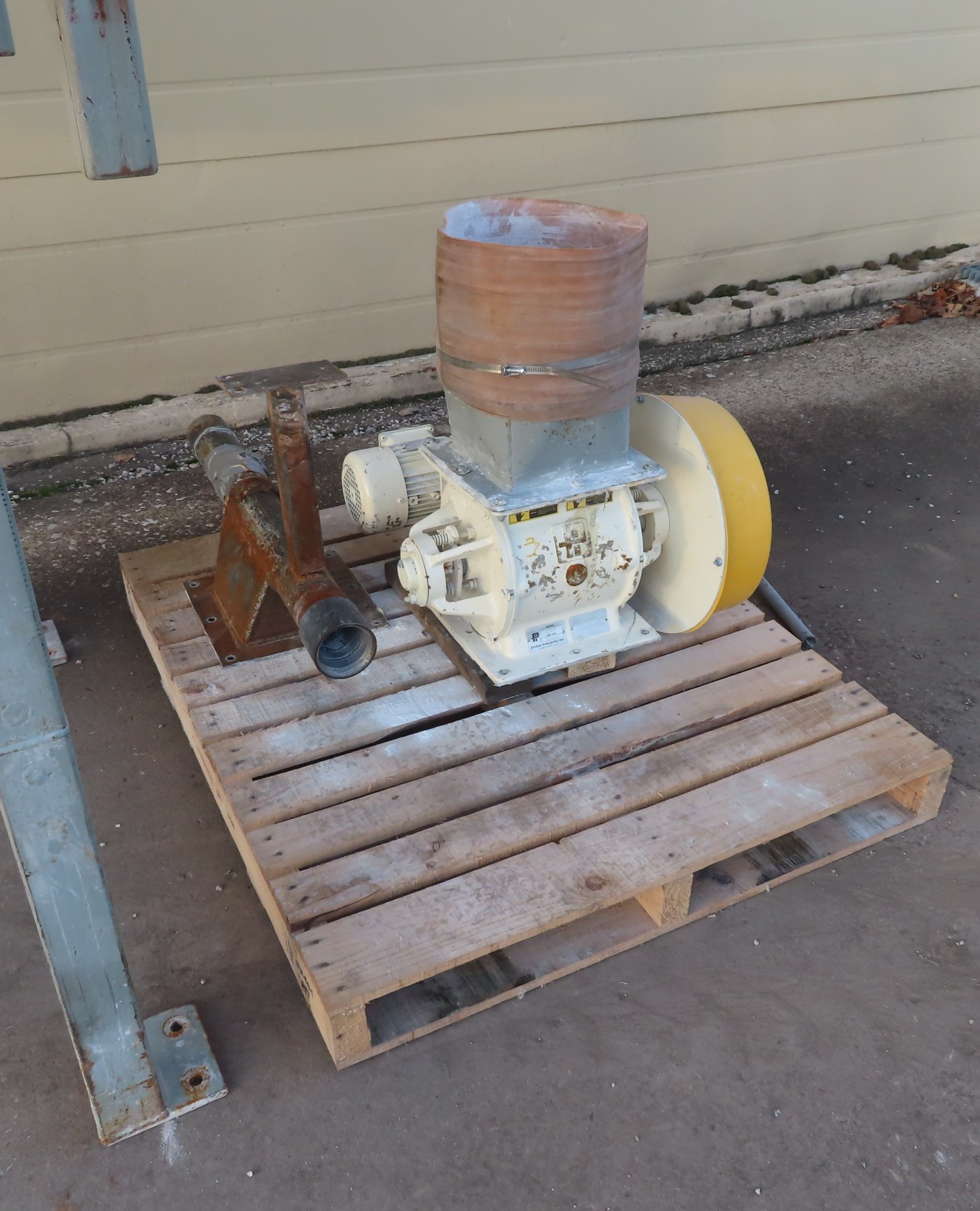

- » Discharges into a Prater rotary valve with gear reduced drive

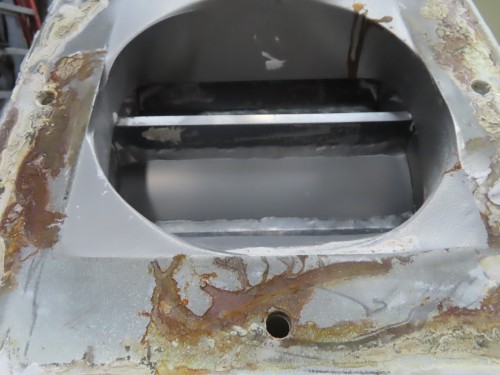

- » Valve is equipped with shallow vanes (see photo)
- » Prater Model: PAV-8 S.C.I.
- » 3/4 HP motor with gear reducer, 3 phase, 230/460V

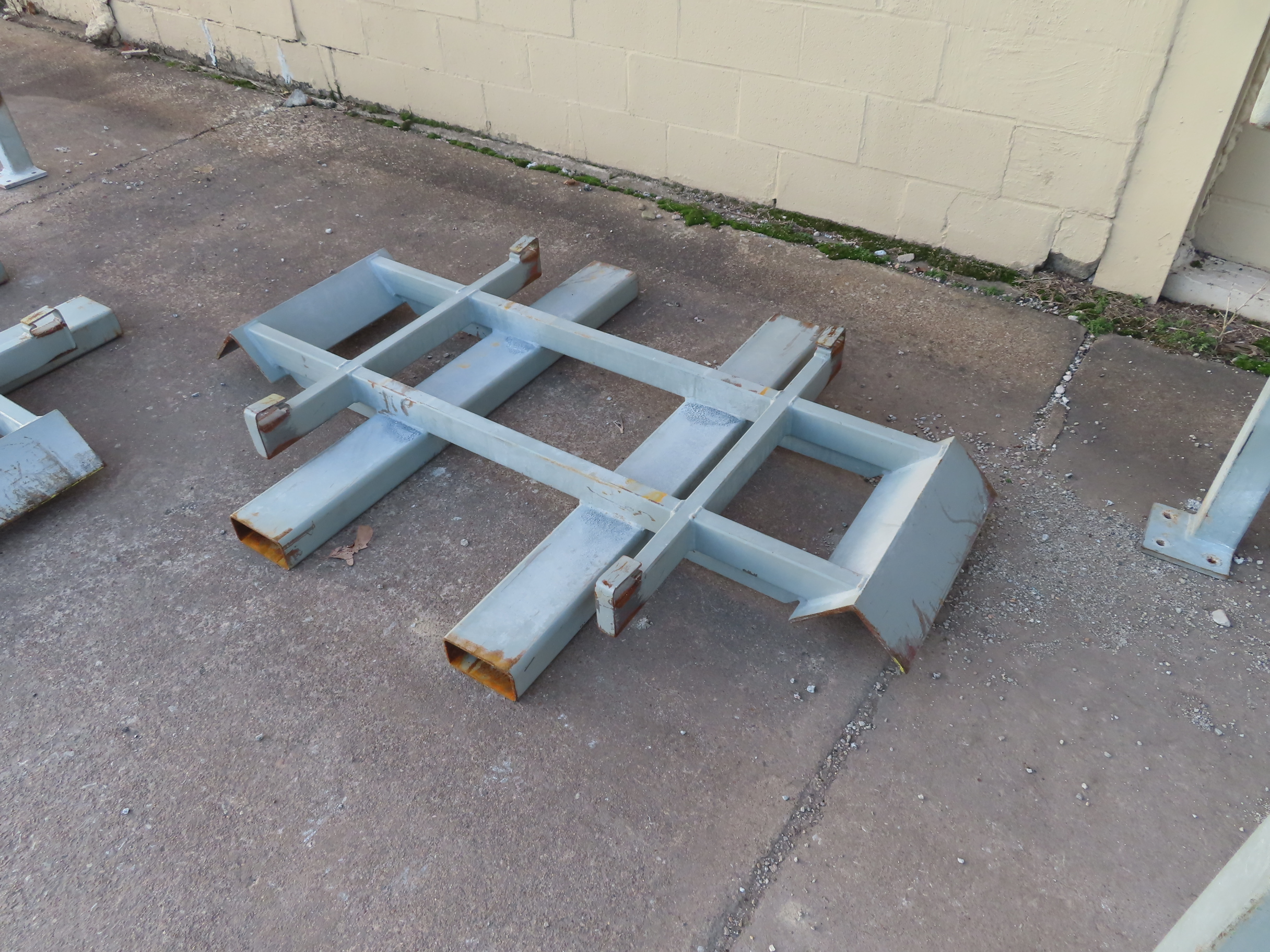

- » Equipped with spider for picking up bags and placing them on holder

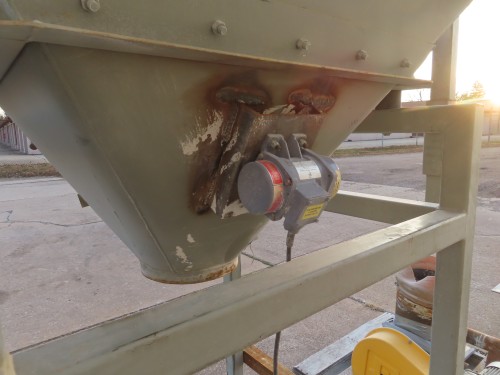

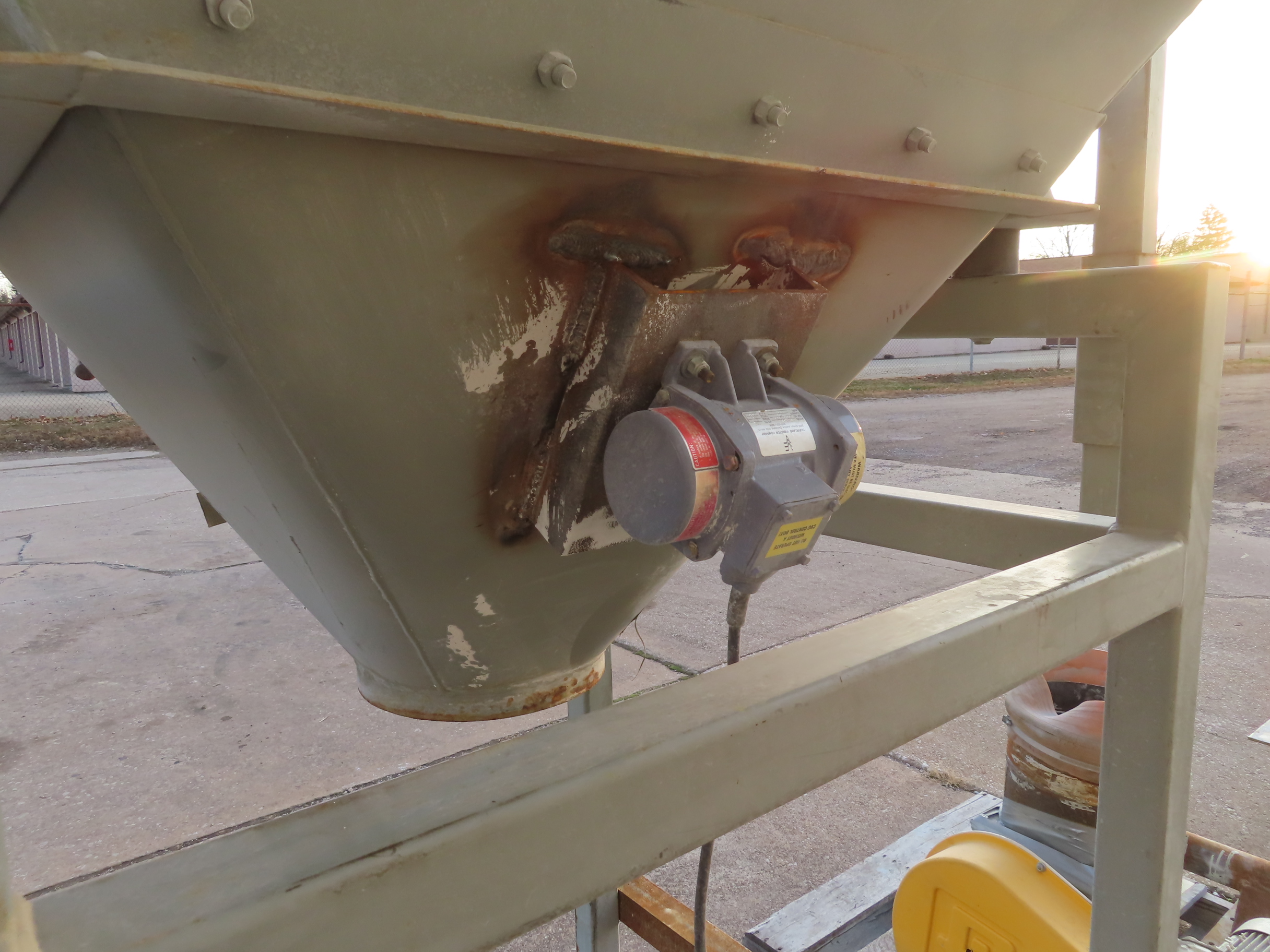

- » Equipped with vibratory motor attached to hopper
- »
- » Previous customer used a pneumatic blower to move product from airlock
- » We have the 3" diameter pipe and discharge connection (see photo)
