Sparkler HRC-50 Filter, horizontal tank, rotating plates
Category: Filter
Product ID: 3391
Specifications
- » One (1) used Sparkler Filter
- » Model HRC-50
- » Serial number 22106, built 1984
- » National board #2082
- » 62.6 sq ft of filter area, 7 plates
- » Rated at 10.4 cu ft cake capacity

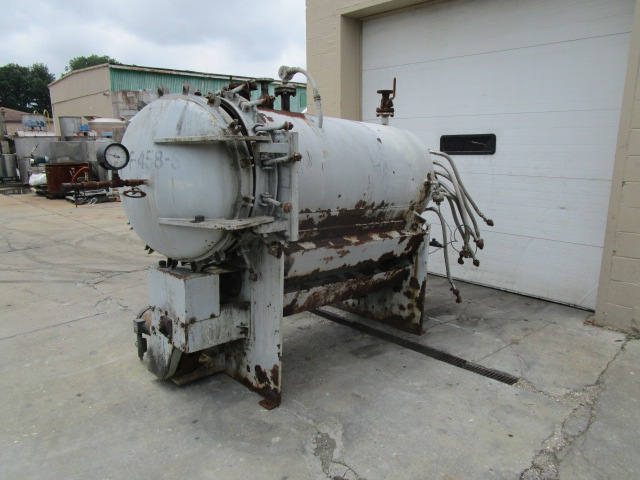

- » Horizontal tank, rated tank volume 450 gallons

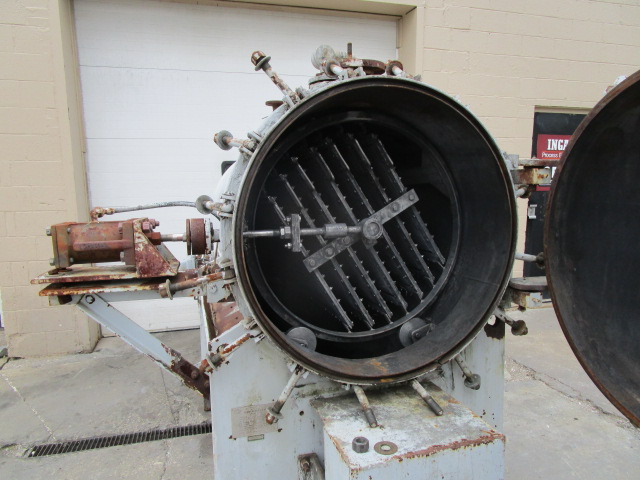

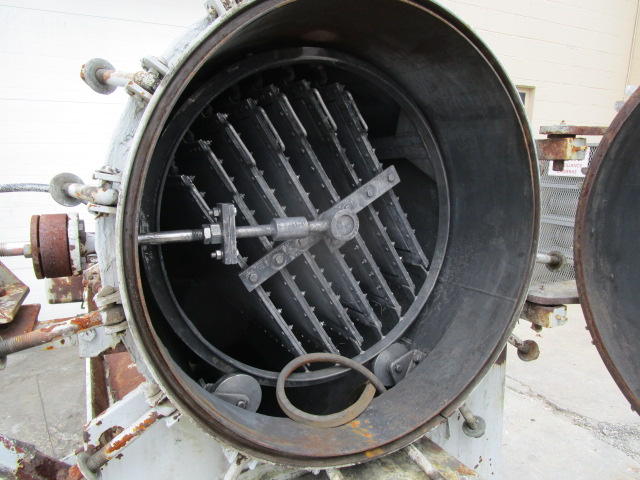

- » Horizontal plates that rotate vertically for discharge

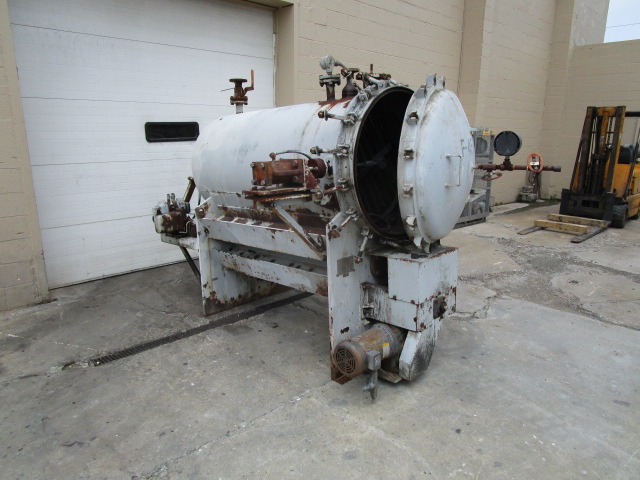

- » Mild steel horizontal tank with a hinged front door
- » 1 HP hydraulic unit for rotating plates to a vertical discharge position
- » Equip. with air vibrator to help clean the plates

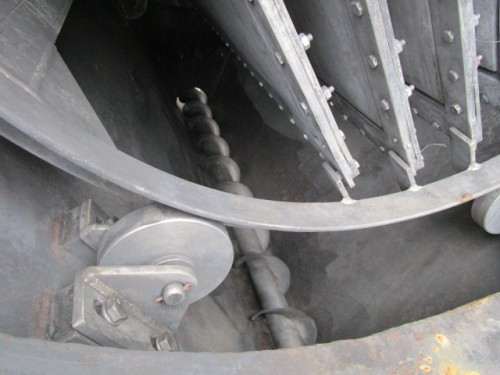

- » Equipped with 5 HP discharge auger, gear reduced, chain driven
- » Motors are 3 phase, 230/460 voltage
- » Rated maximum working pressure 75 psi at 650 F
- » External manifold piping exiting back of tank
