Mannesman Meer Hydraulic Compacting Press
Category: Powder Compacting
Product ID: 4235
Specifications

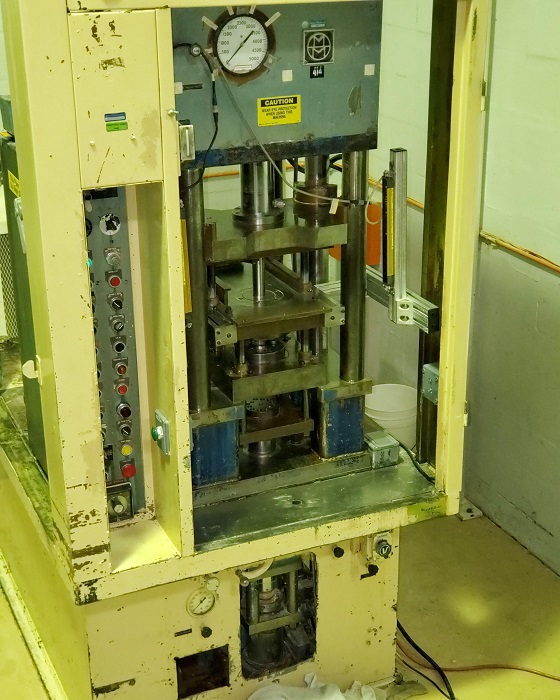

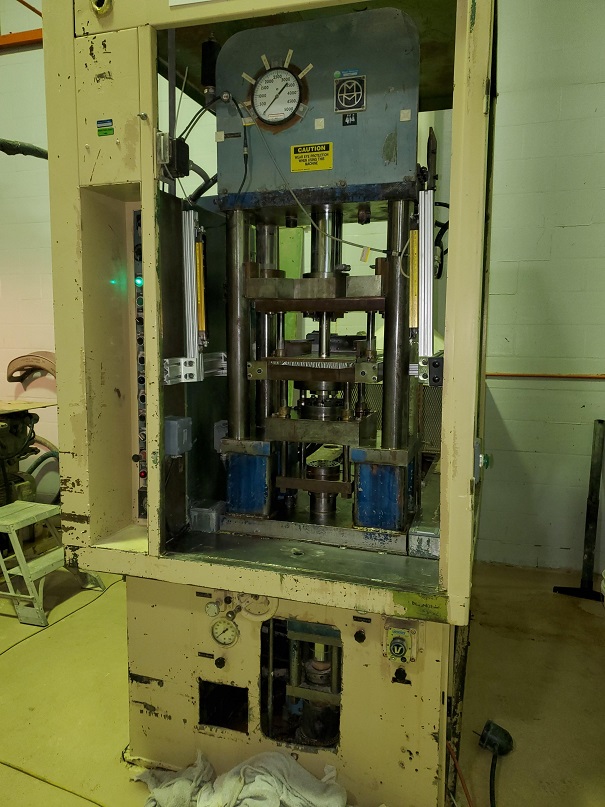

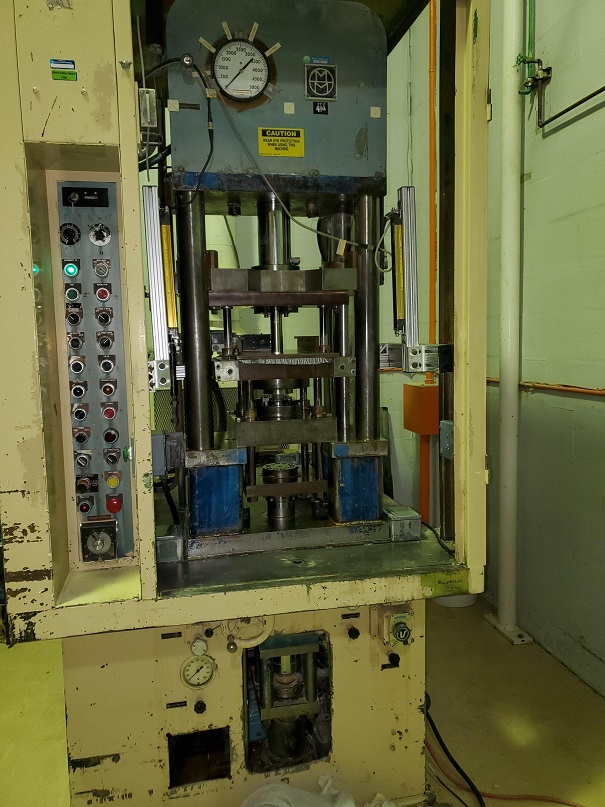

- » One(1) used 28 ton Mannesman Meer Hydraulic Compacting Press
- » Model 25/3
- » 28 ton Hydraulic compacting press
- » Serial number CP2566-3-063
- » Hydraulic design, opposed ram, die set
- » 7.5 hp, 1200 rpm motor, tagged 220/440 voltage, 3 phase
- » Denison lower ram flow control, Vickers Die Force Float Control
- » Handwheel fill adjustment, shuttle feed from rear
- » 28 ton maximum pressing force
- » 17 ton maximum withdrawal force of lower ram
- » 9.3 ton maximum pressure for floating die action
- » 8" maximum upper ram stroke
- » 4 7/8" maximum depth of fill
- » 17" right to left between columns
- » 7" front to back between columns
- » up to 18 strokes per minute

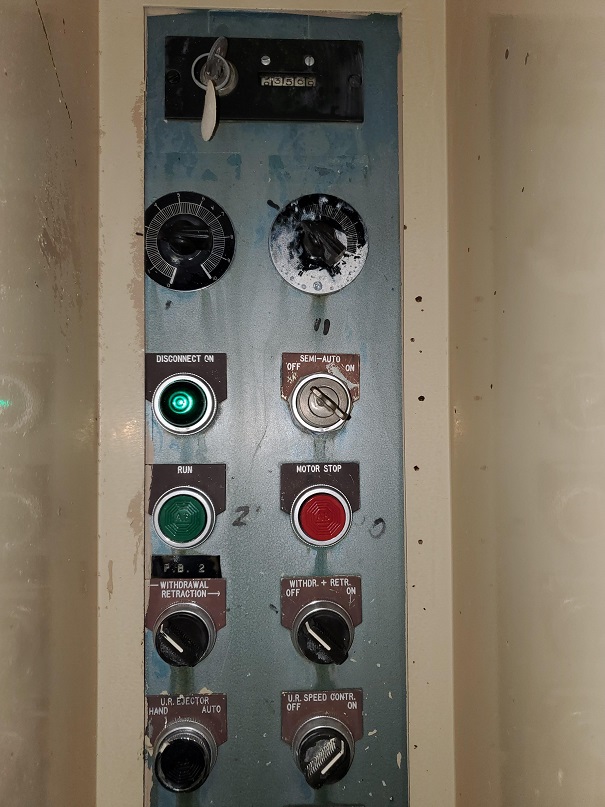

- » Includes operator controls.
