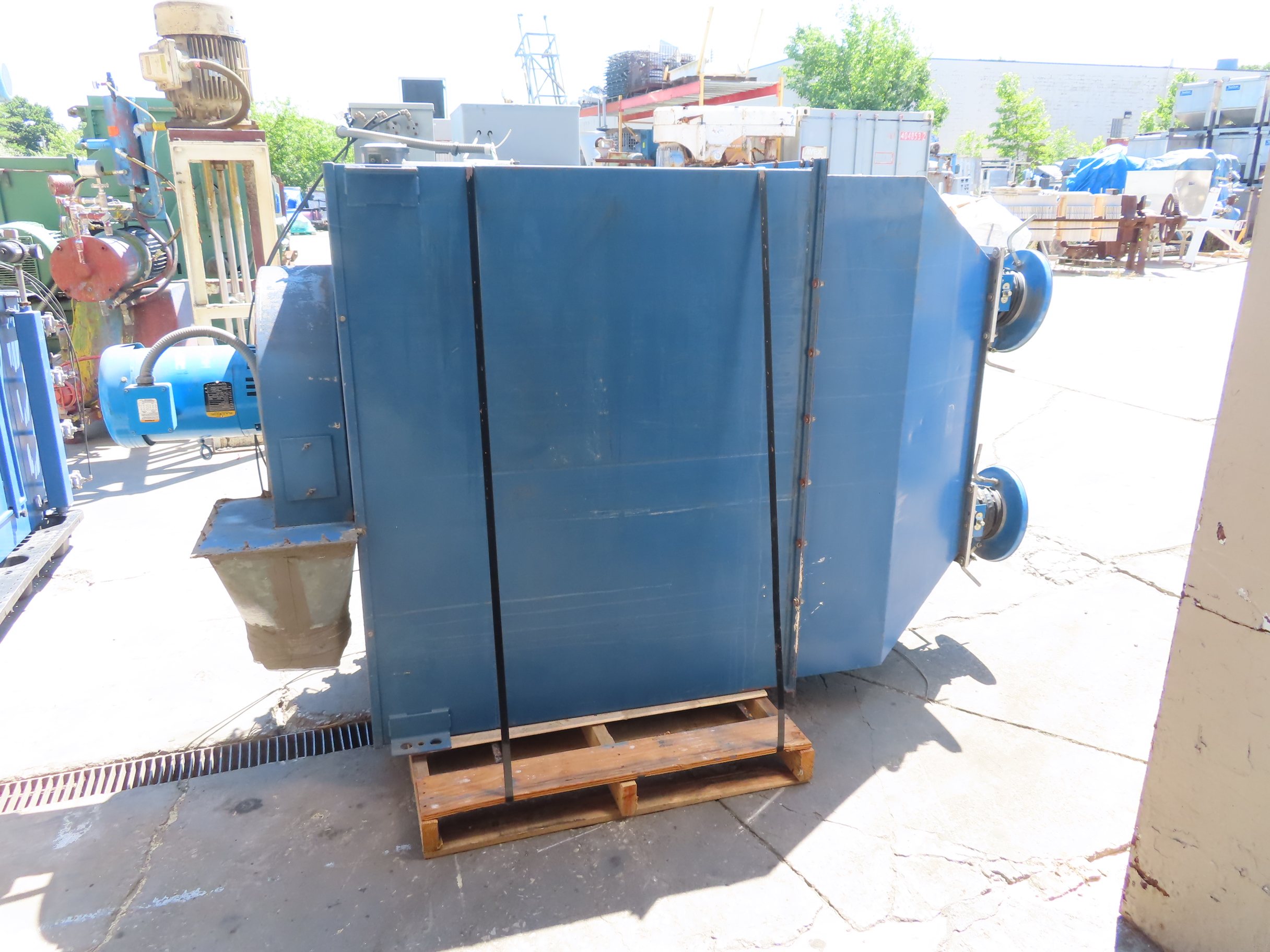

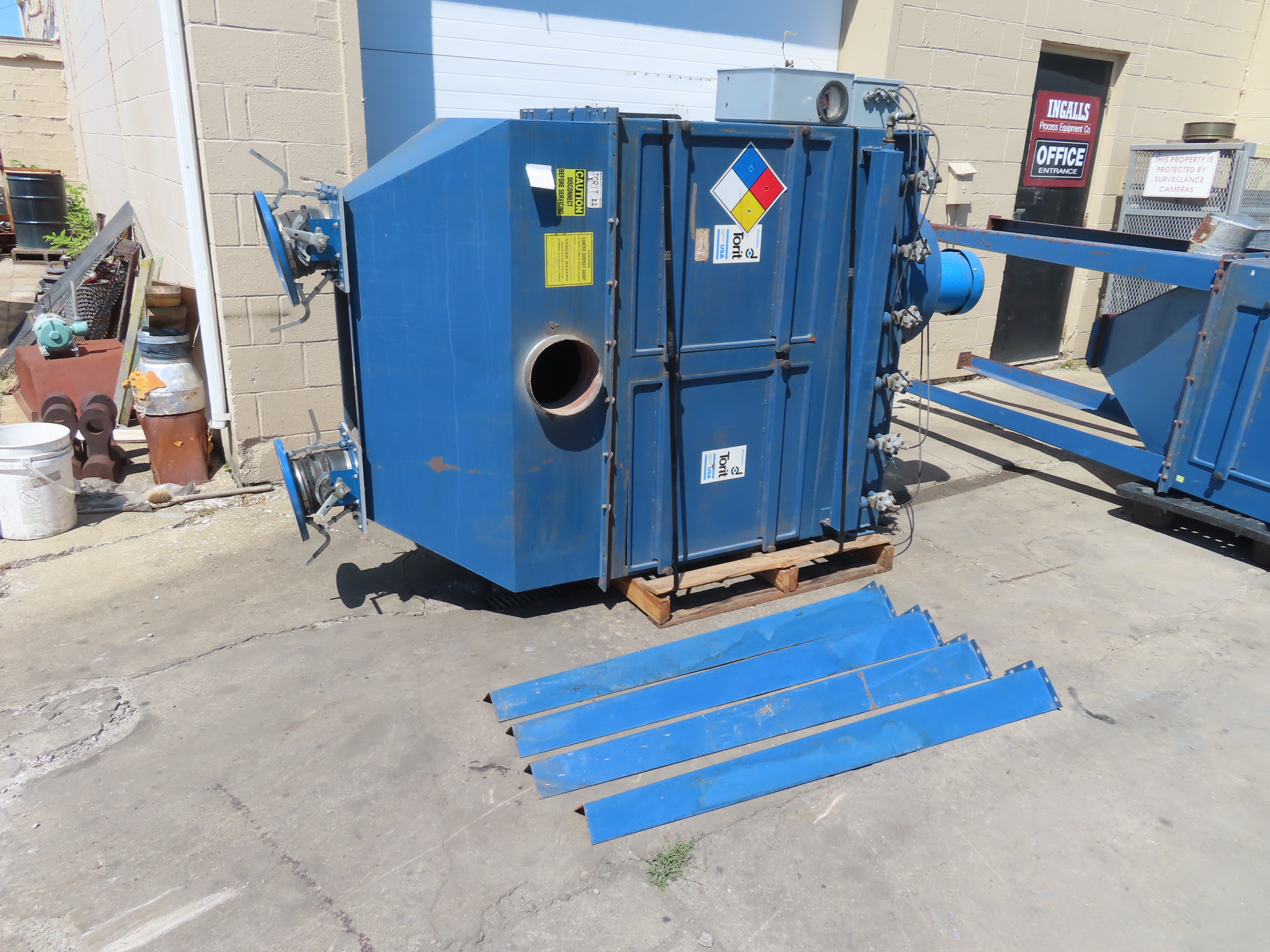

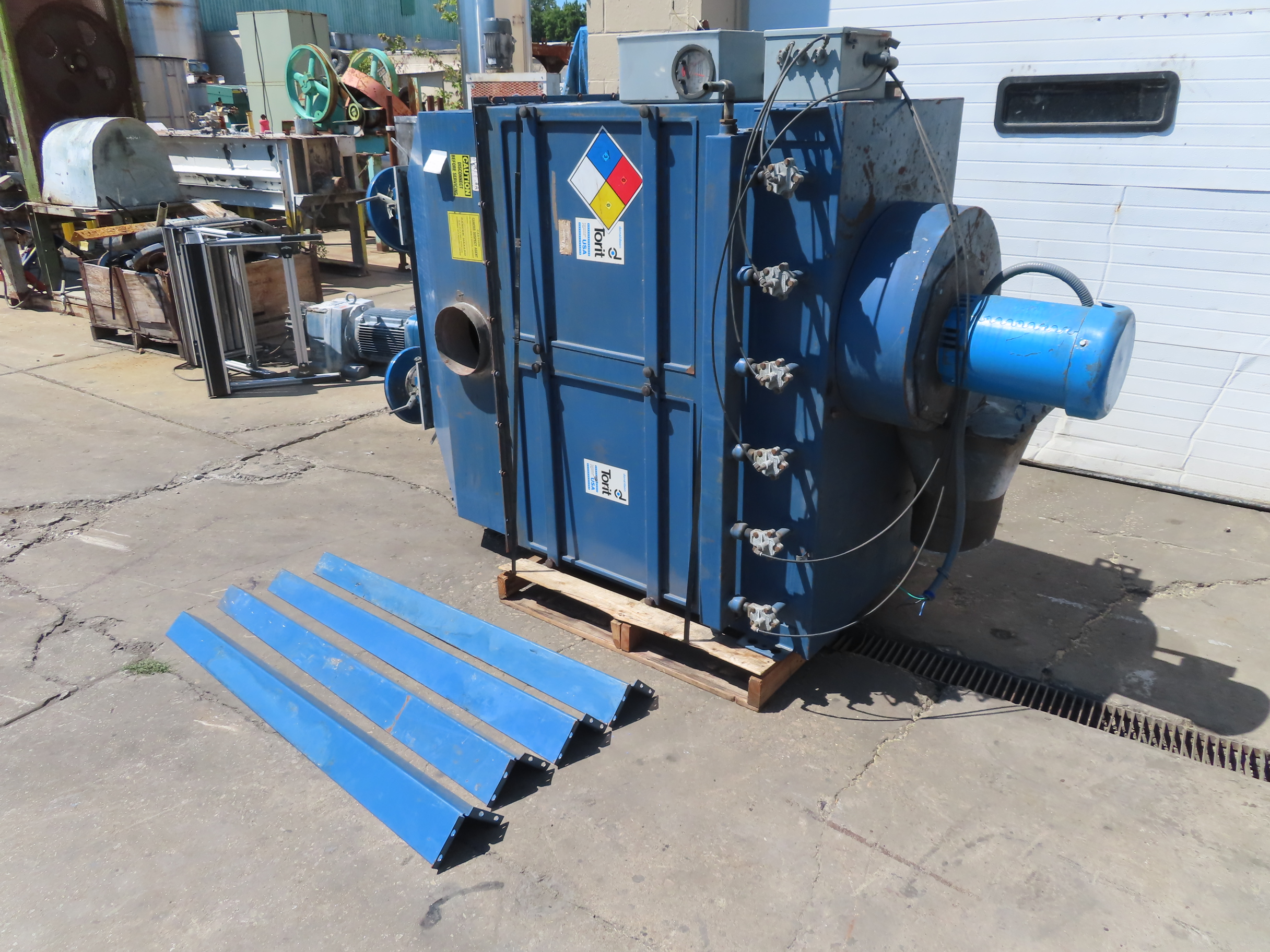

7.5 HP Donaldson Torit Pulse Jet Dust Collector, TD-970
Category: pulse jet
Product ID: 4586
Specifications
- » One (1) used 7.5 HP Donaldson Torit Pulse Jet Dust Collector
- » Model TD-970

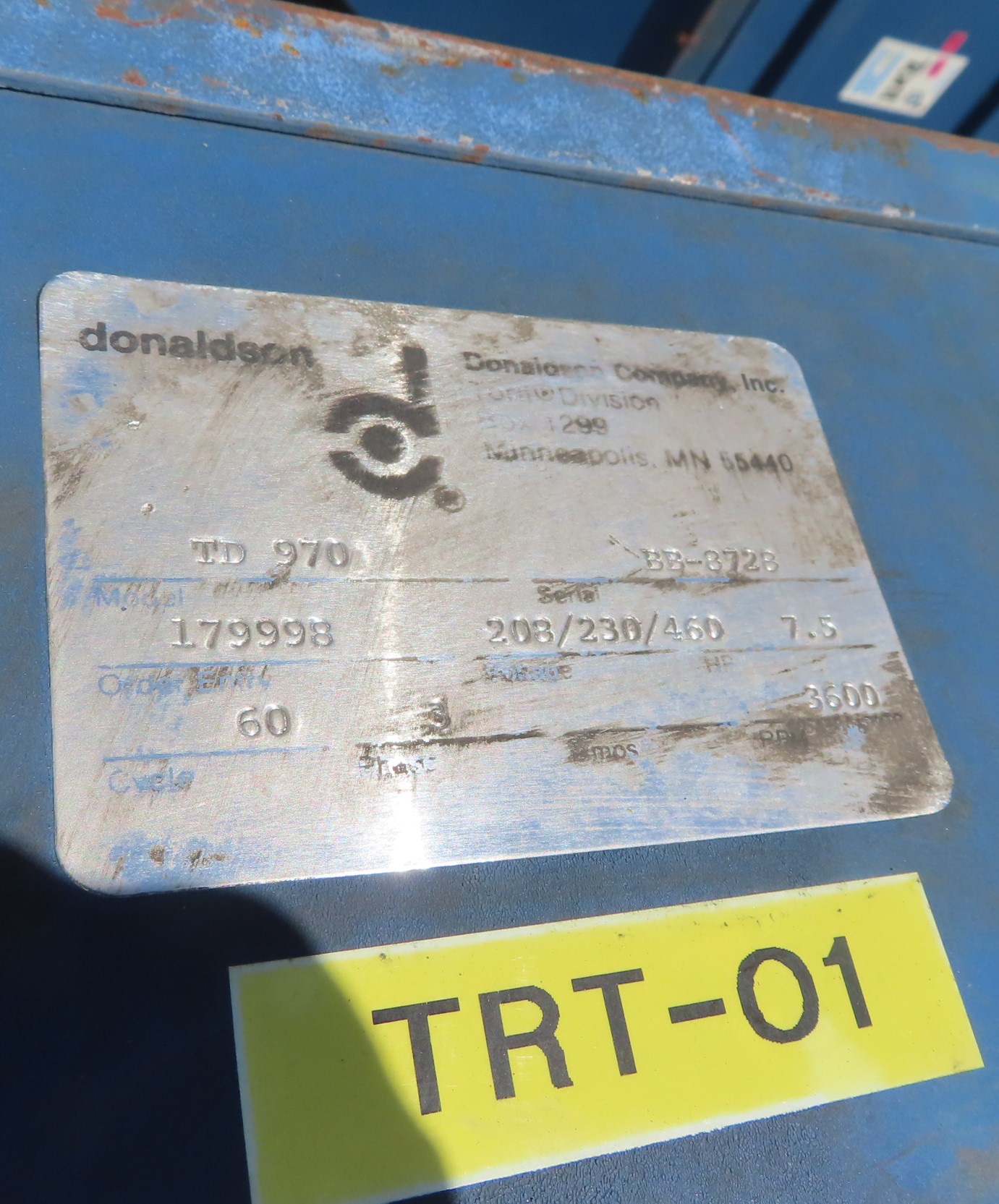

- » Serial number: BB8728
- » 7.5 HP blower, 3 phase, 208-230/460 voltage
- » Rated at 972 sq ft of filter area

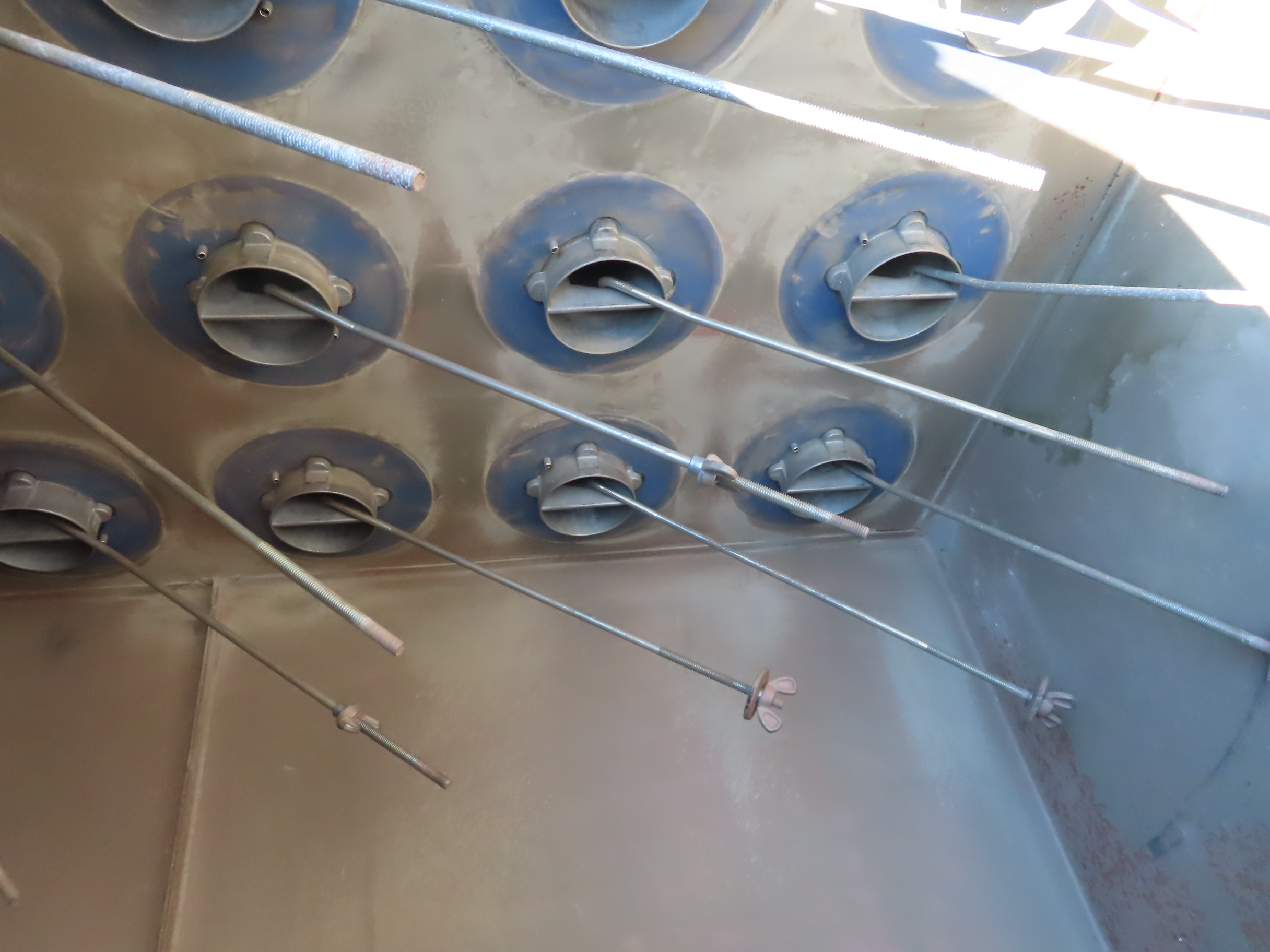

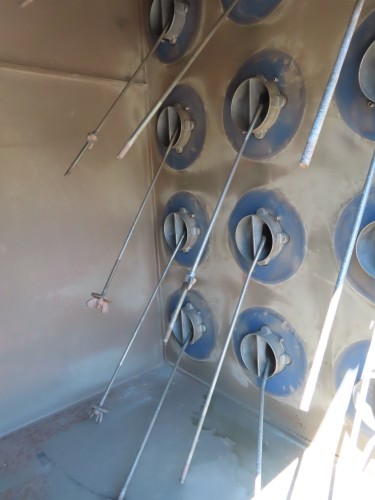

- » 18 cartridges, which are not included, hangers are included
- » Two discharge hoppers with butter fly valves and drum cover assemblies
- » Bolt on legs will ship on the side to save space
- » Set up for 6 rows of three cartridges.
- » Automatic cleaning via pulse jet while running
- » Filter Cartridge dimensions - 7 7/8"OD x 3.5" ID x 16" long
- » Includes Photohelic and Magnehelic gauges
- » Shipping weight approximately: 900 lbs.
