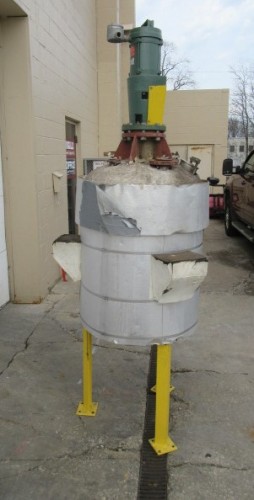

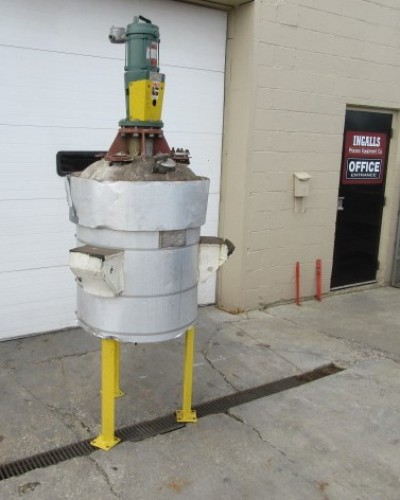

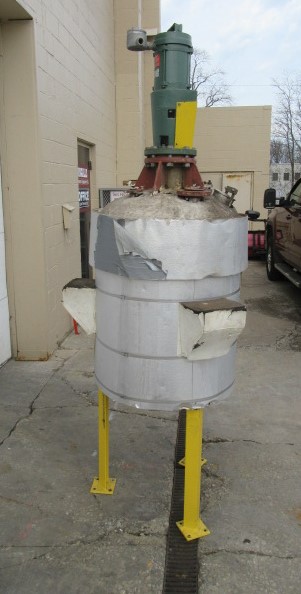

50 gallon Stainless Steel Mix Tank, 316L S/S, 25 psi/FV
Category: Stainless Steel Reactor
Product ID: 3728
Specifications
- » One (1) used 50 gallon Stainless Steel Tank Mix tank

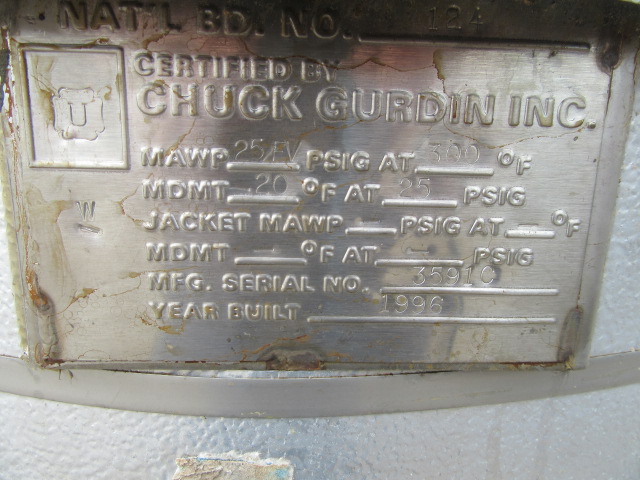

- » National Board number: 124, Serial number: 3591C, built: 1996
- » Mfgd. by Chuck Gurdin Inc.
- » 24" diameter x 23" straight wall
- » Bolt on dish top and dish bottom
- » Material of construction: 316L
- » Rated 25 psi and full vacuum at 300 F (no jacket)

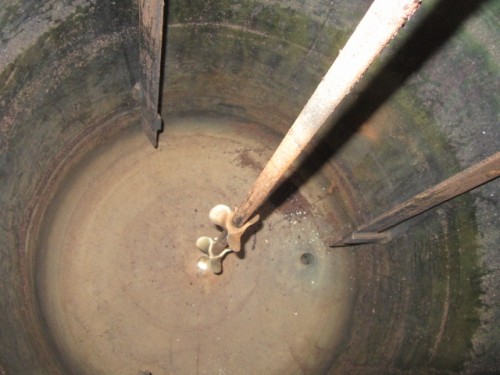

- » With internal baffles
- » Built with a #4 internal finish

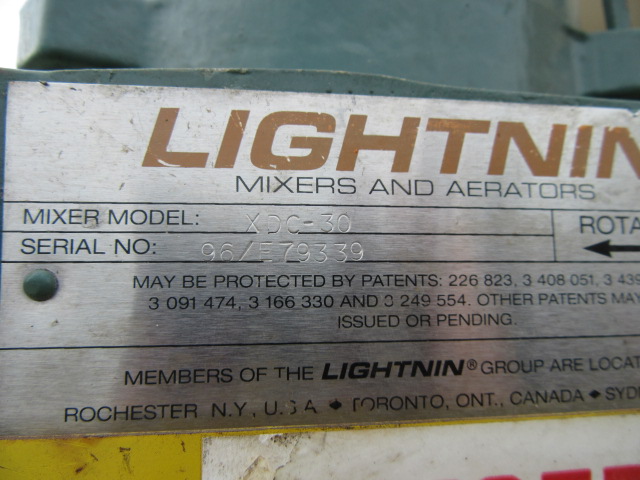

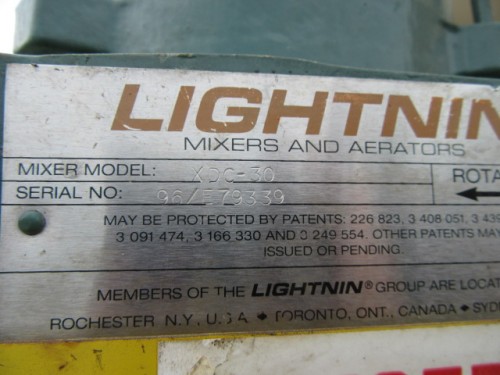

- » 0.3 HP Lightnin Agitator drive with shaft and small boat props

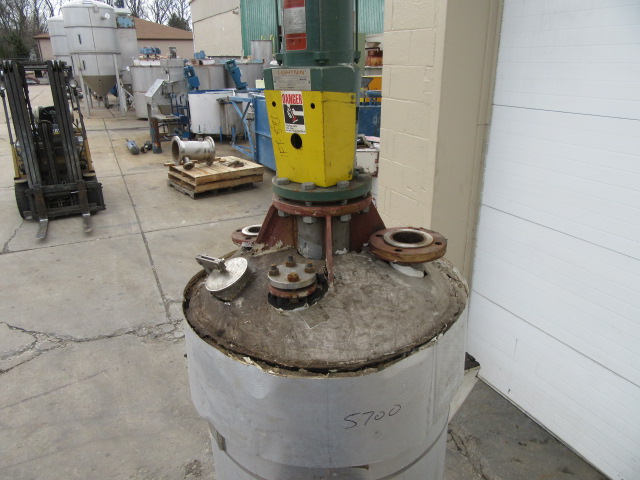

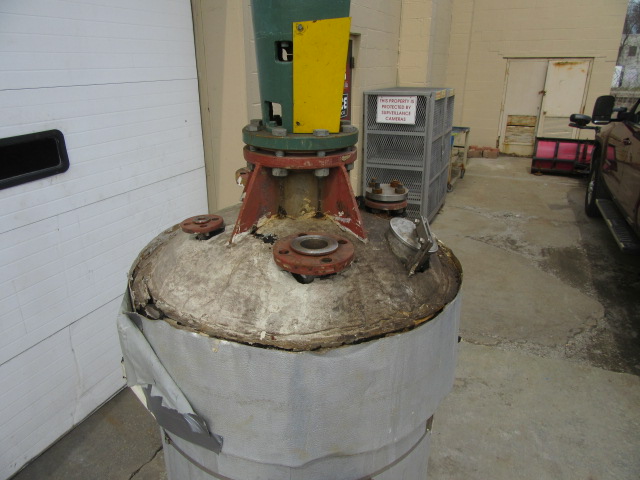

- » Top includes: Center agitator, (1) 3", (2) 1", and 4" hand inlet with cover

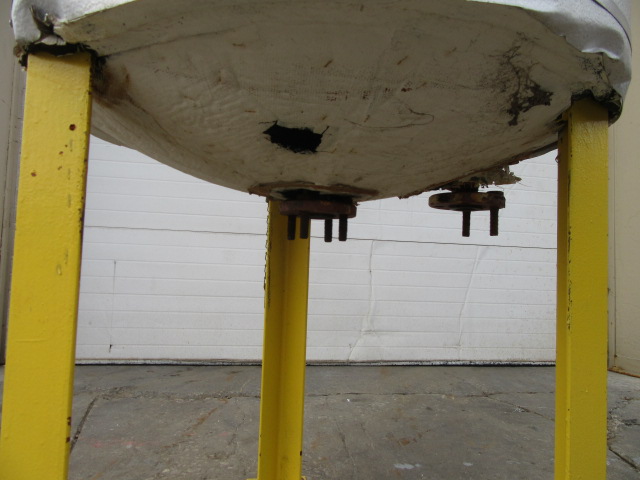

- » Bottom dish includes: 2" center bottom outlet and 1" off center outlet
- » Carbon steel legs
- » U-1 form and blue print on file
- » Weight: 650 lbs.
