100 gallon Union Process Attritor, Stainless Steel, Jacketed
Category: Mills
Product ID: 5030
Specifications

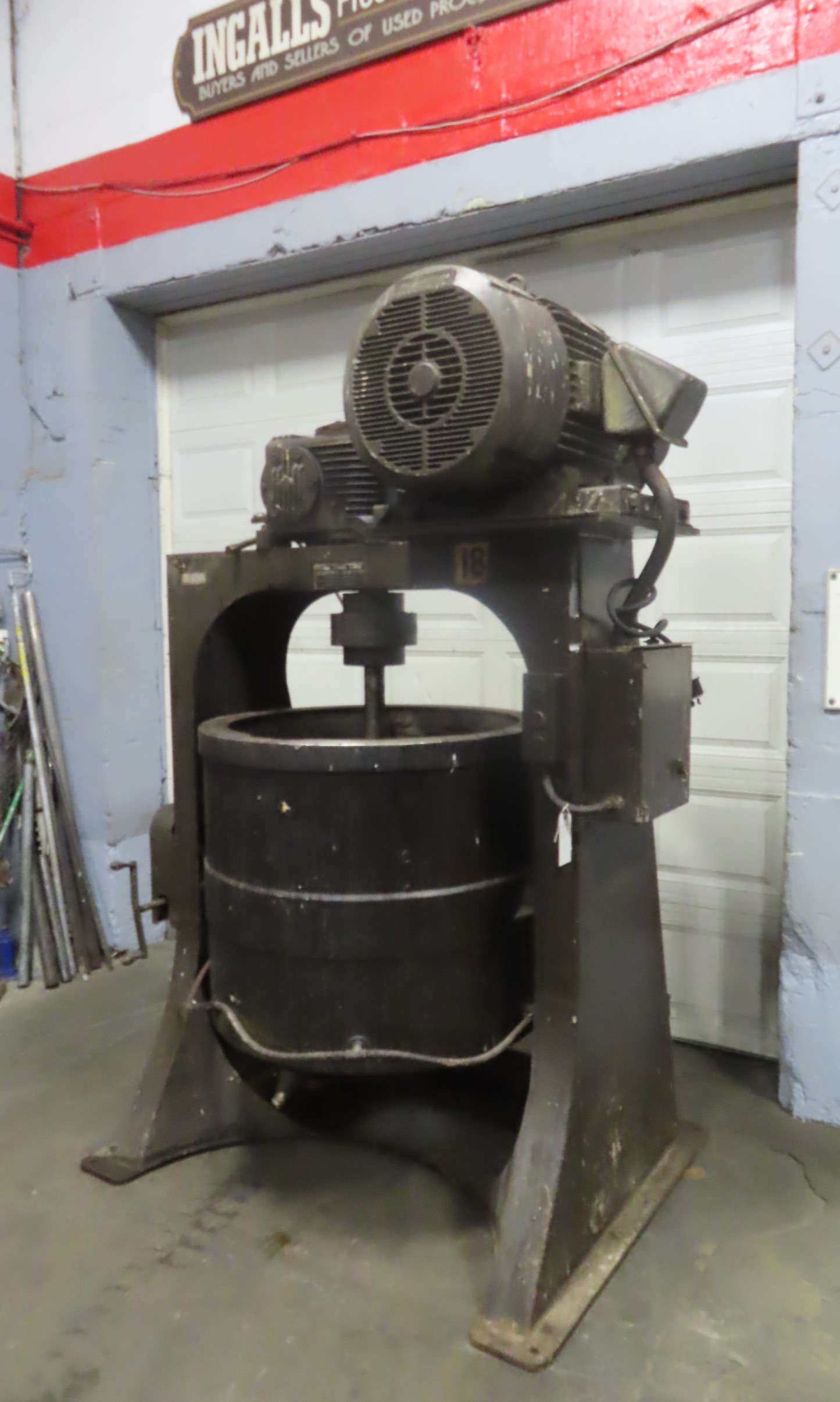

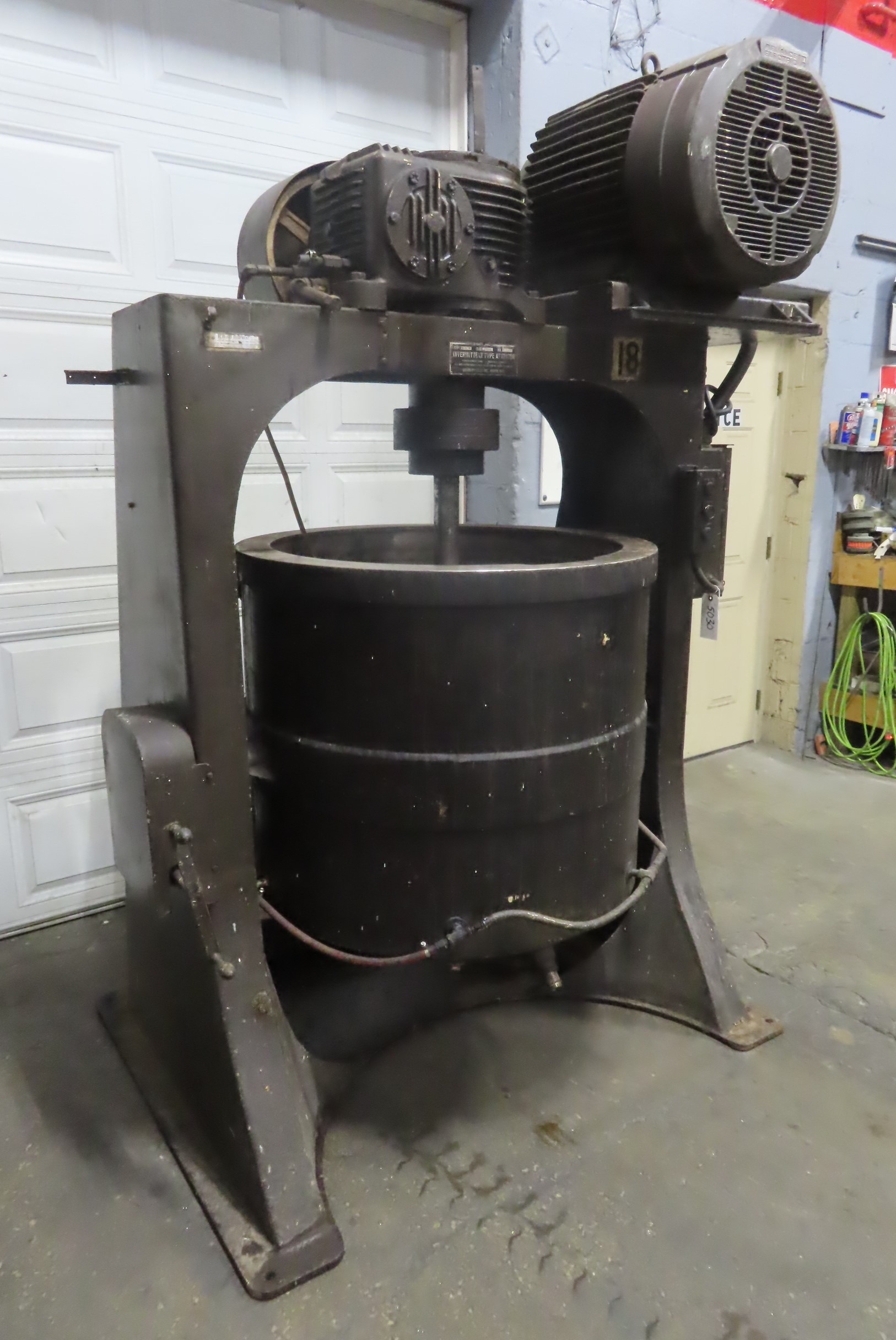

- » One (1) used 100 gallon Union Process Attritor

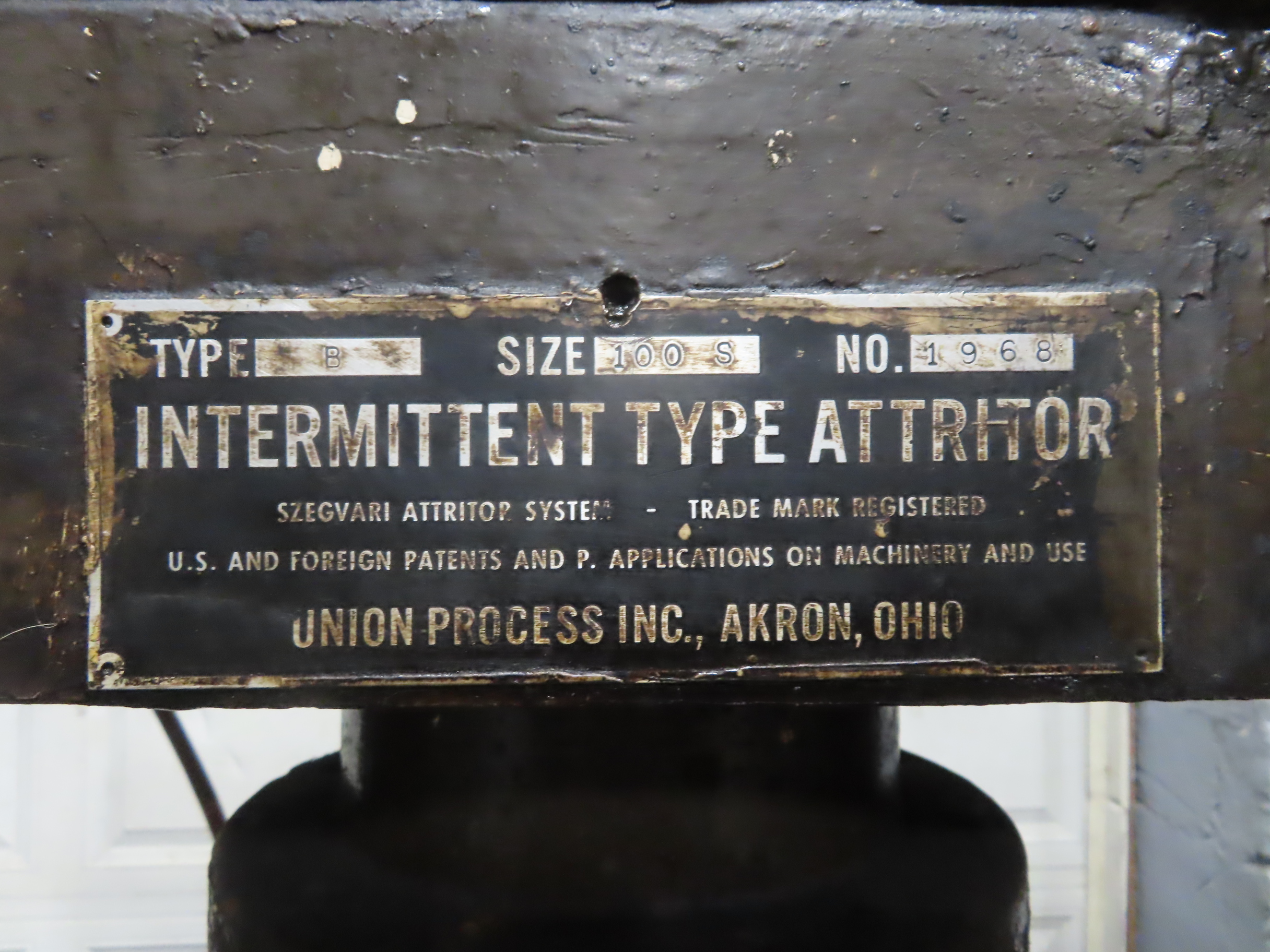

- » Type: B
- » Size: 100S
- » Serial number: 1968
- » Stainless steel jacketed tank
- » 35" diameter x 31" deep
- » 5.5" diameter discharge screen, tapers to a 1" discharge

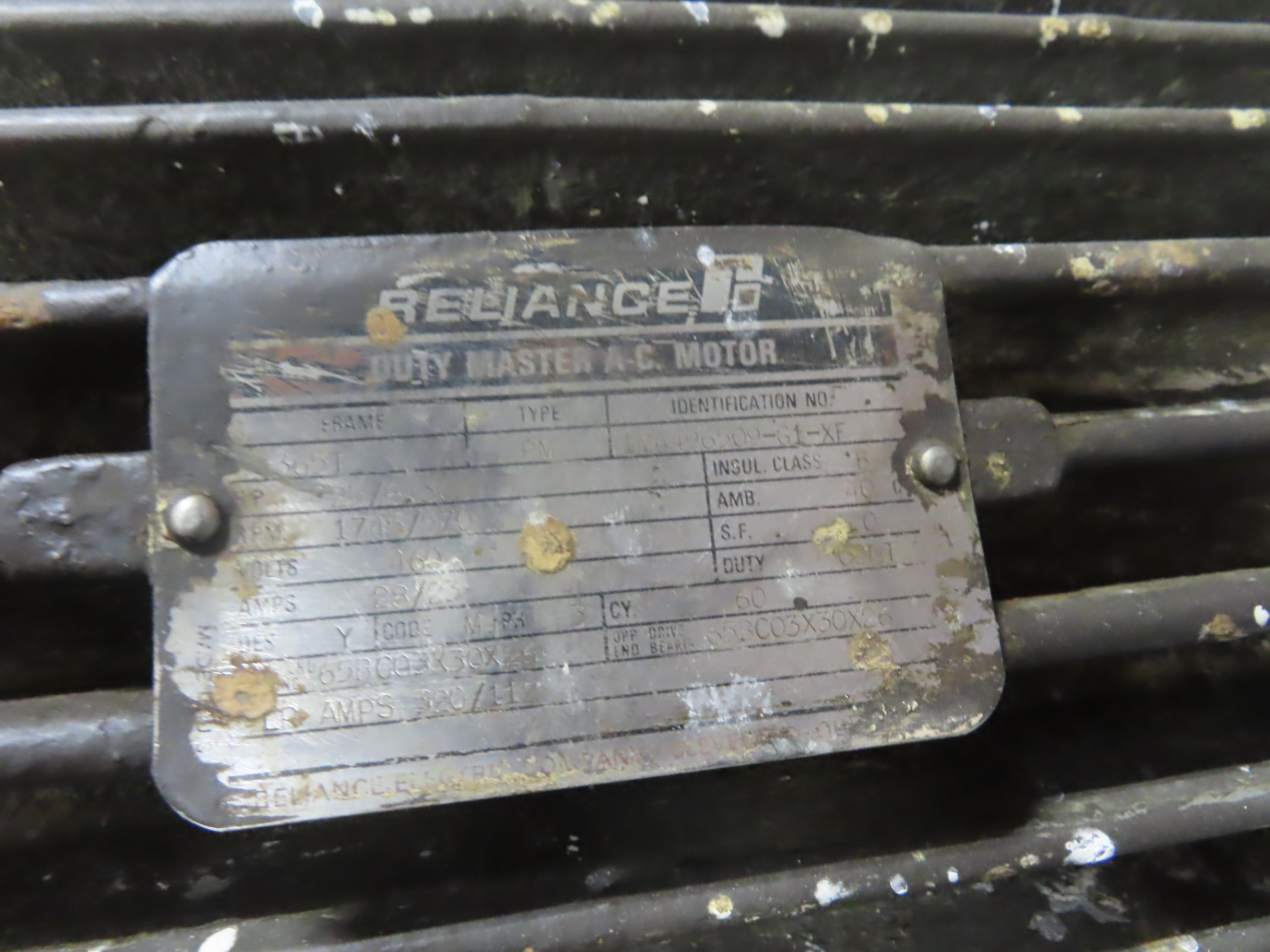

- » 25/8.5 HP 2-speed motor, belt driven to gear reducer
- » Final shaft RPM is 75.8 and 24.7
- » Includes belt guard
- » 3 phase, 440 voltage only
- » Hand crank with gear box for tilting tank

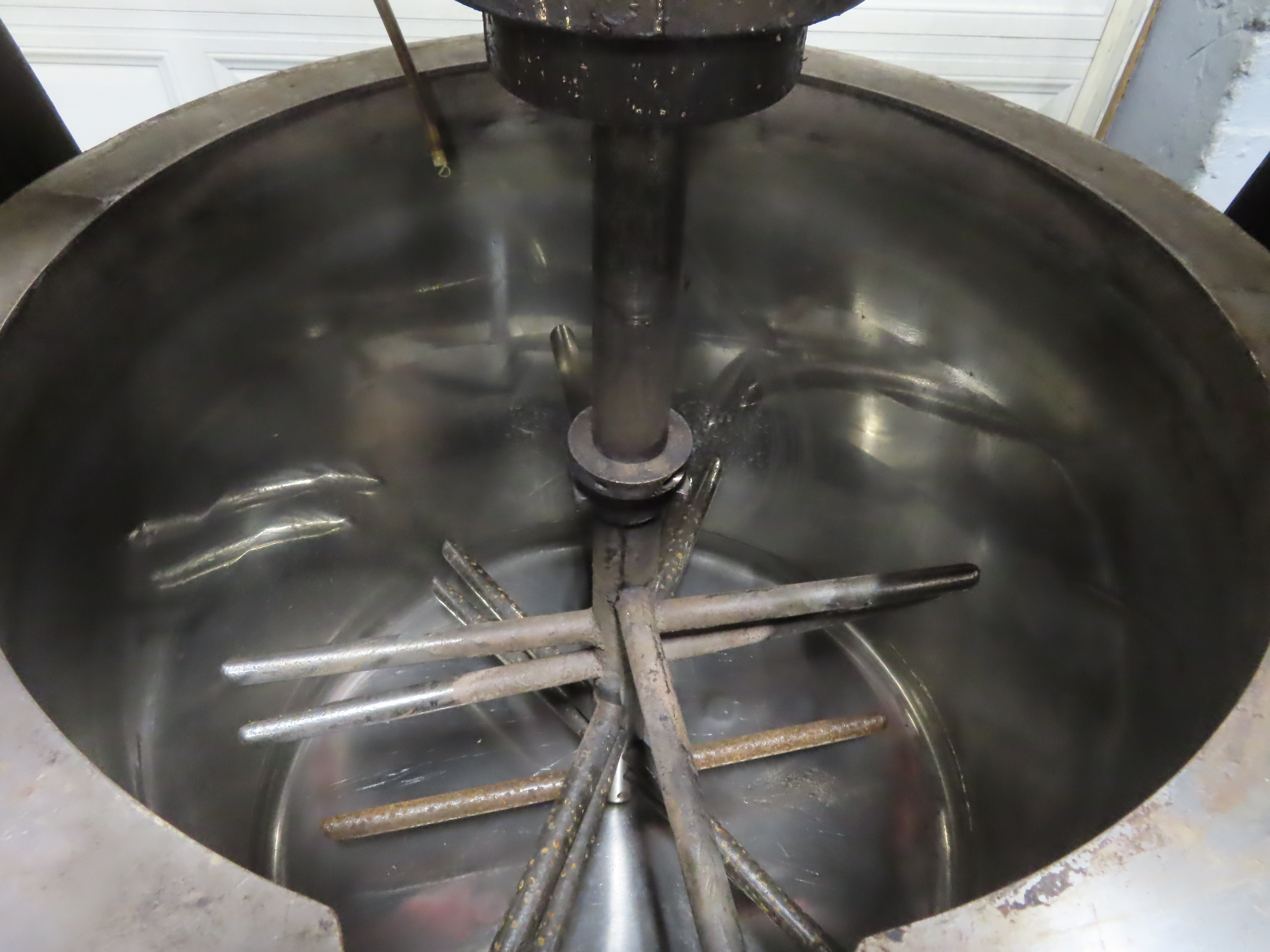

- » Shaft and arms are in good condition
- » Removble split top tank cover
- »
- » 2.5" shaft diameter, arms are 1.25" diameter
- » Tank is clean and ready for mixing

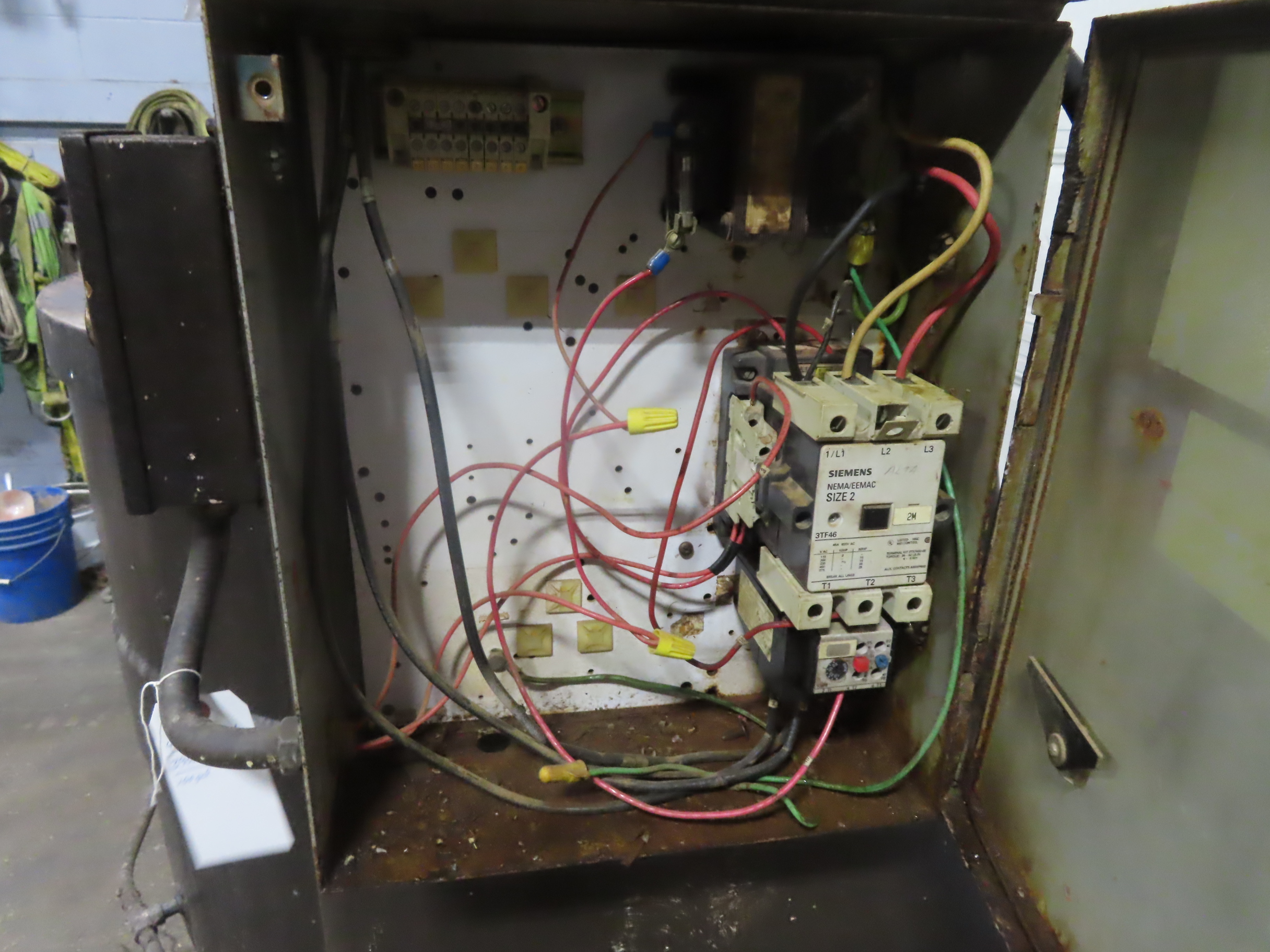

- » Includes start/stop buttons and Size 2 single speed motor starter
- » Overall Dimensions: 66" L - R, 48" F-B, 8' tall
- » Weight: 3,900 lbs.
- » Test run video is available or can be seen under power for an in-person inspection
